More Advanced Features, Higher performance, upgraded version of MB V2.0 ,
Supports Multi-system diagnostics, Battery Test, Data review & print
+Special Service functions as: Oil reset, EPB, SAS, DPF, ETC, ABS Bleeding , Injectors coding
Added more powerful functions like Auto VIN identity, TPMS programming ,Actuation Test / Bi-directory Test, Fuel Pump activation, Air Filter Self-learning, BCM(Body stability), ECM (Engine), TCM (Tans adaption), Seat calibration, Air Suspension Reset, ACS (Air Conditioner) Adaptation reset, Head Lamp calibration.

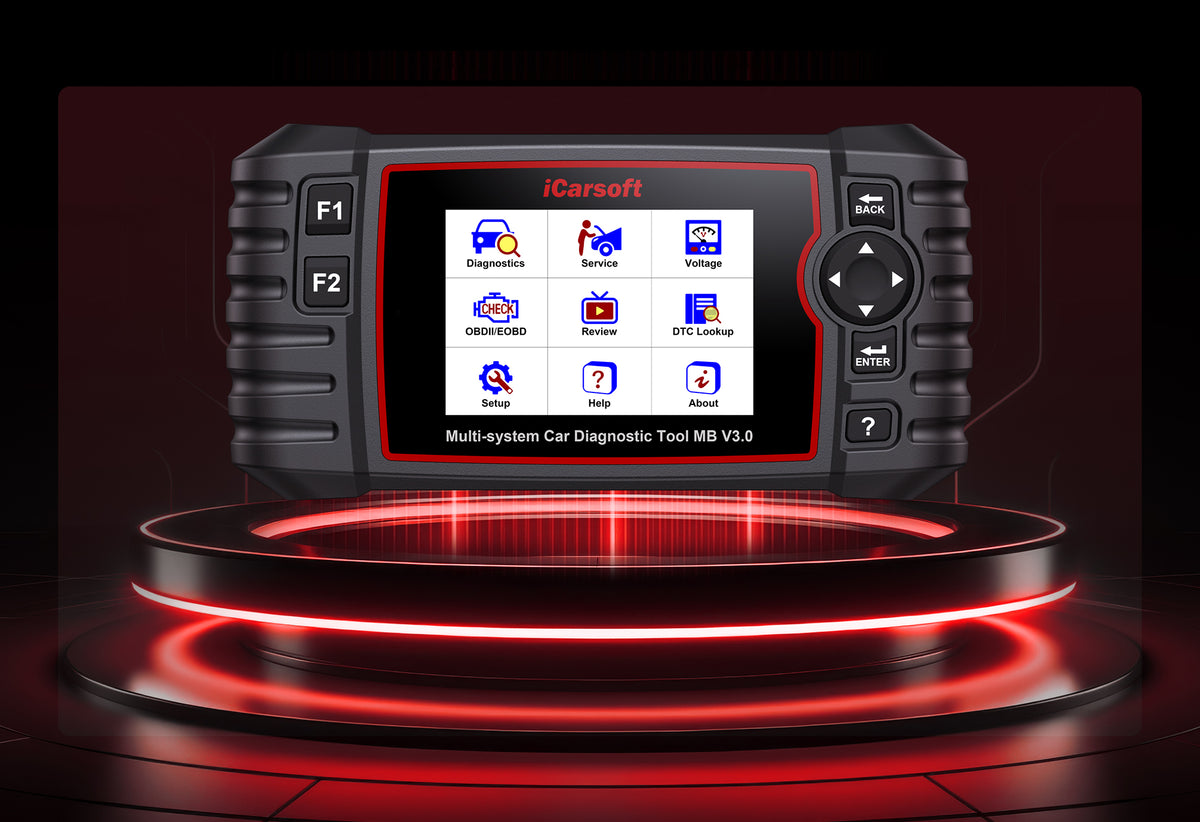

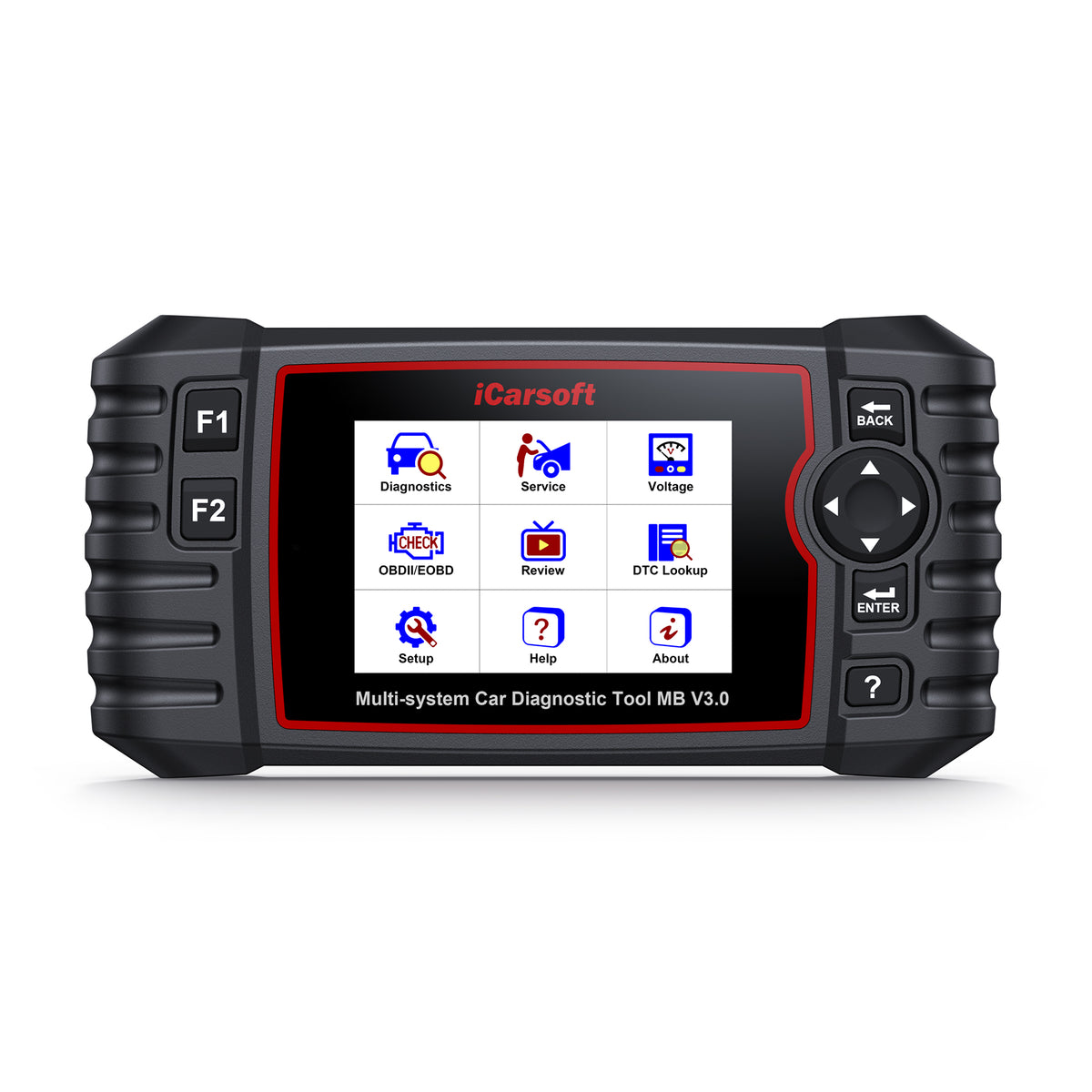

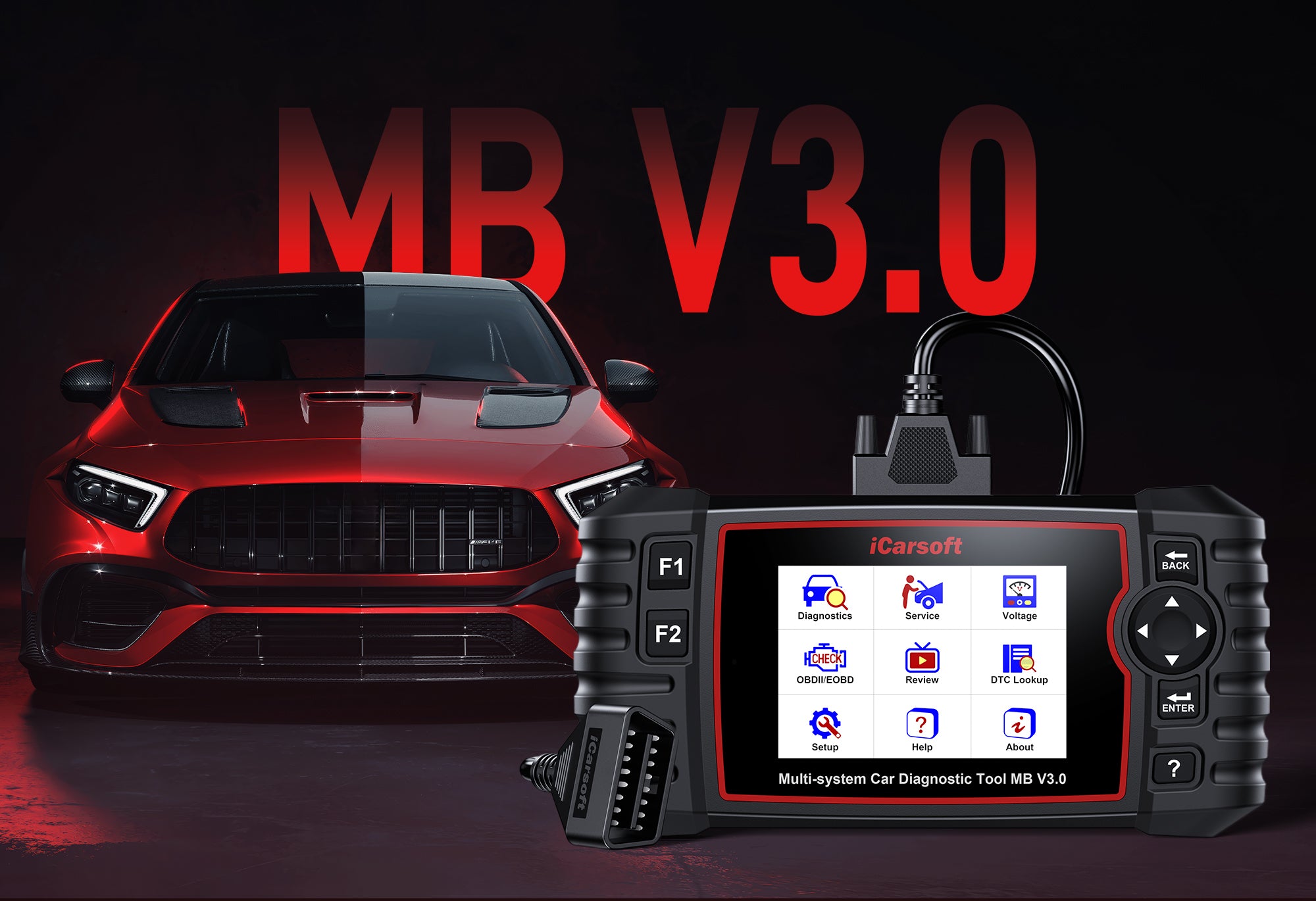

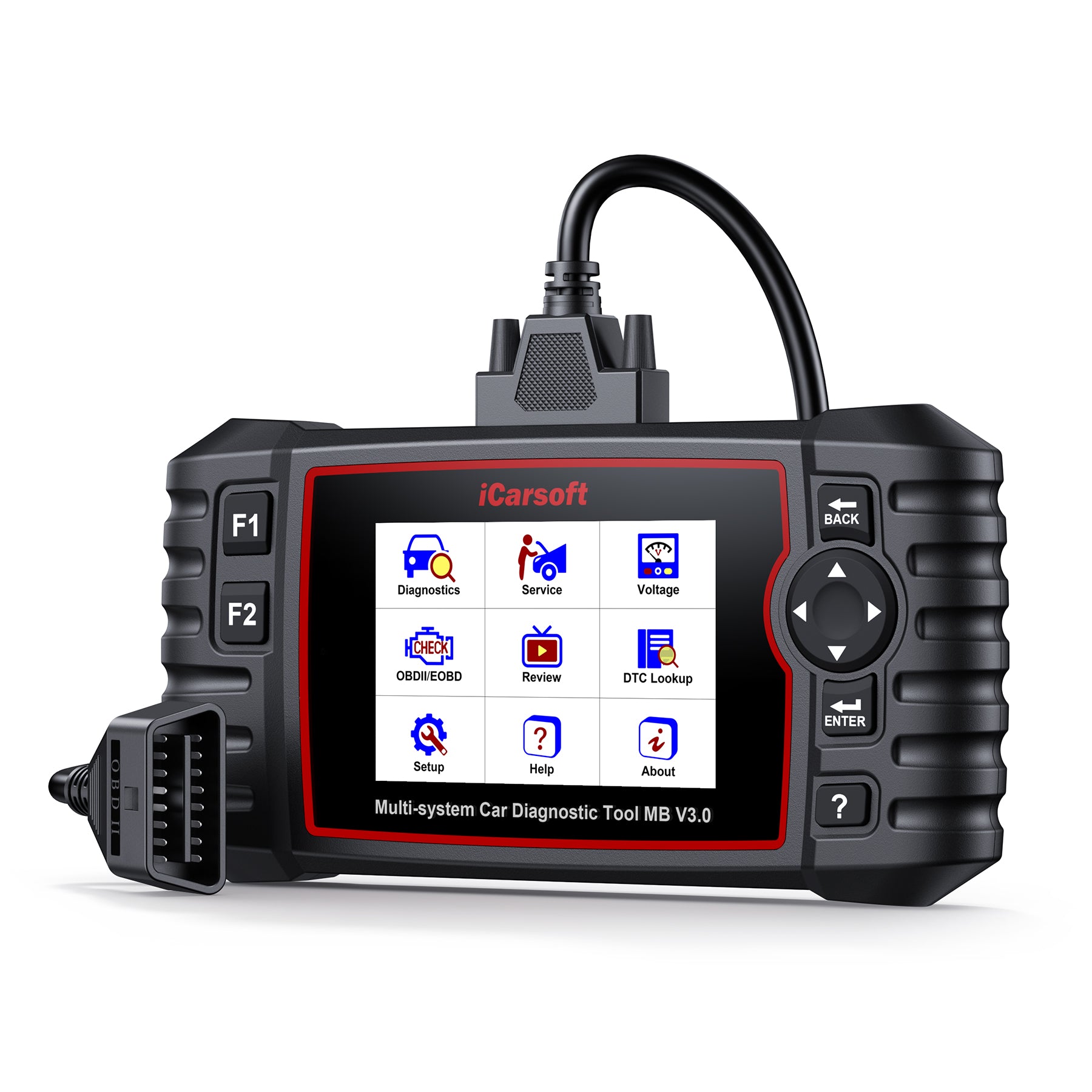

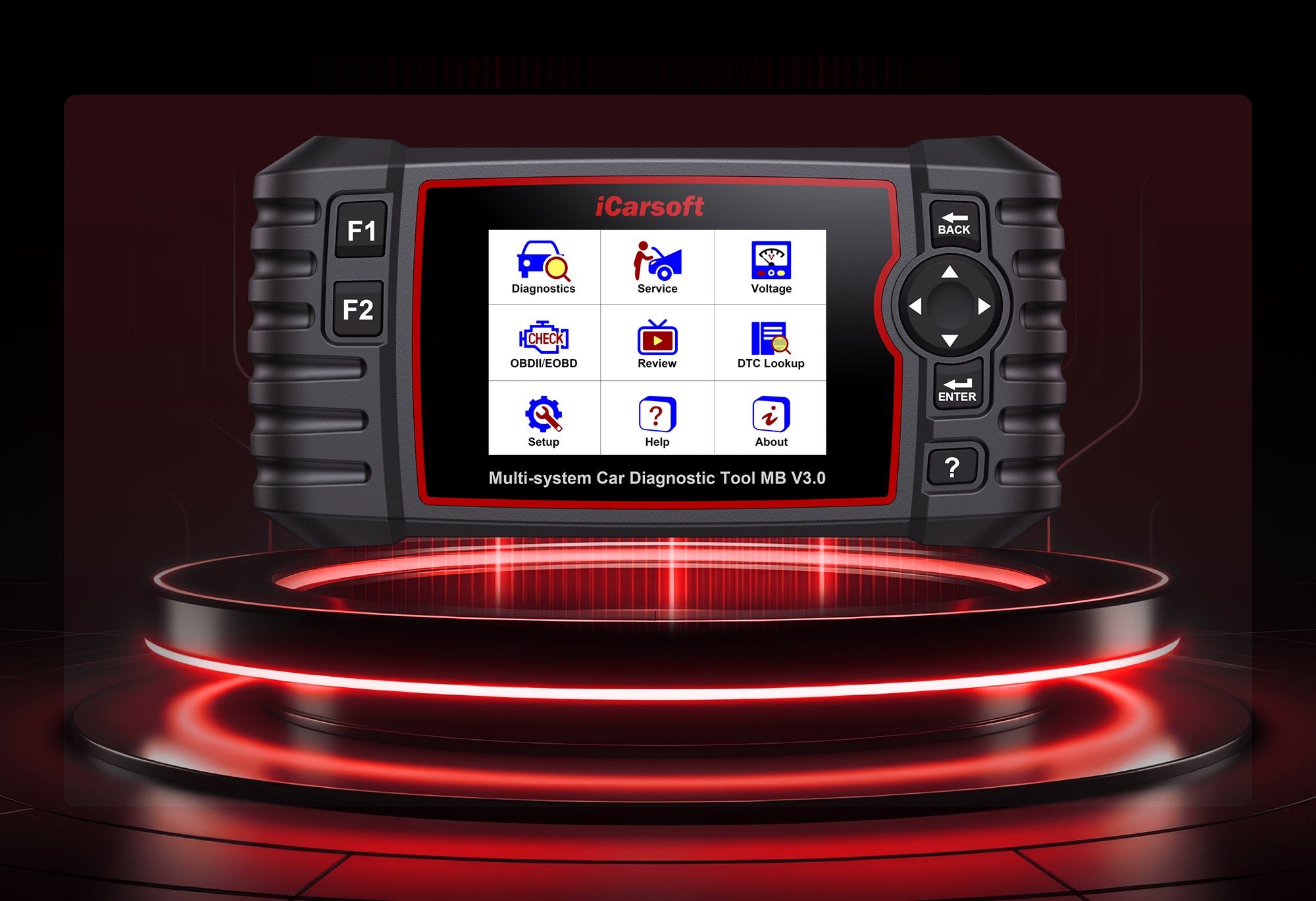

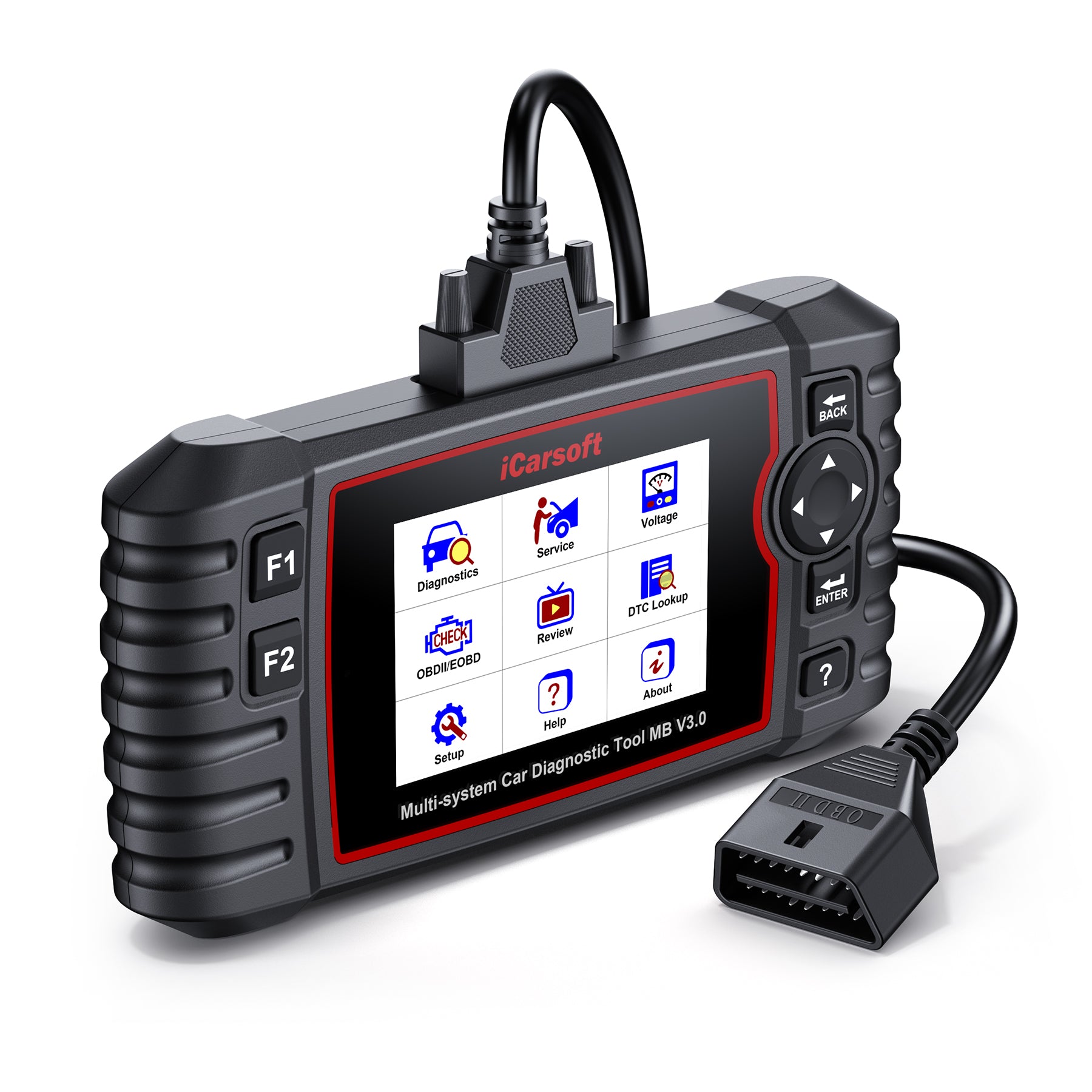

iCarsoft MB V3.0 is a Professional and powerful vehicle fault diagnosis tool developed by iCarsoft Technology Inc.
With a 4.0” TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.
COMPATIBLE WITH SINGLE-BRAND CAR MODELS
This full function diagnostic tool, is compatible with OBD2 (1996-2019) vehicle models and will work on most on-board electronic systems.
Supports the OEM of brands made in America, Asia and with PETROL and DIESEL in Europe OBD2/EOBD.
This car computer reader can also be used as a universal OBD scanner to retrieve generic check engine light codes allowing you to read or clear the codes. Simply connect OBD II port on your car, turn the ignition on and go.
BEST IN CLASS INNOVATION
iCarsoft LR V3.0 can do it all-reads and clears trouble codes on most systems such as engine, transmission, ABS and airbag etc.
Supports OBDII/EOBD, with Ten Modes of Operation, read live data, full ECU diagnosis etc.
It automatically detects your car model and scans all modules for error codes.
This special technology allows for specific diagnostic functions and testing!
DYNAMIC TEST CAPABILITIES

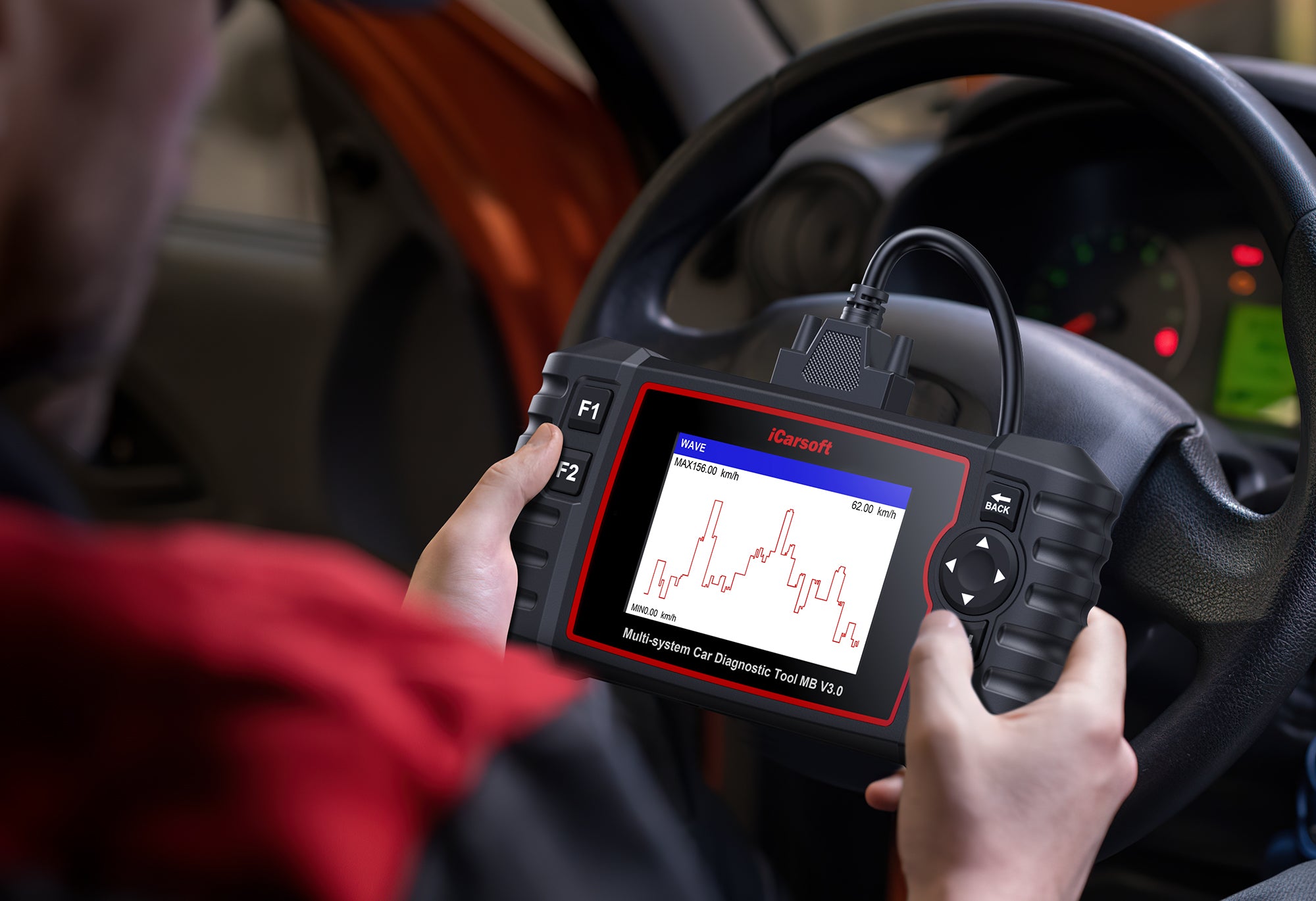

The Multi-lingual function allows you to view & graph live data in color while graphing at a blazing fast refresh rates for quicker results.
Our OBD2 scanner allows you to read pending DTCs and permanent DTCs with a DTC Library to lookup while operating the tool.
Providing you with accurate data results for all your error codes.
DIAGNOSTIC FUNCTIONS & ADVANCED FEATURES
Along with the standard OBDII functions, this automotive diagnostic scanner also includes special functions including control service interval reset, brake deactivation, battery registration, oil light service reset, throttle body adjustment, DPF Regen, Transmission Adaption, Suspension calibrate, Seat and door adjustment, Freeze Frame, O2 Sensor Test, and Evap System Test are just a few of the special functions this professional quality car scanner provides .
TRY IT RISK FREE
Whether you’re your own personal auto mechanic or you’re a business owner, you’ll fall in love with our compact design of this diagnostic scanner. Its pocket-size and perfect for allowing diagnostic tests inside or outside of the car.
No batteries required - just plug it into the OBD II port and you’re all set.
To ensure the device is compatible with your vehicle, please contact us or check the coverage list under documents.
THIRTY SUPER ADVANTAGES:
- It can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
- Full ECU Diagnosis
- Support OBDII/EOBD Ten Modes of Operation
- Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC
- Easy To Use With Silicone Keys
- Read Live Data; Display live data in text, graph & analog for easy data review.
- DTC Library to lookup when user is operating this tool.
- Support Freeze Frame of Fault Code functions.
- Full High Speed Upgrade via PC, Free service for life time .
- 15 Multiple languages for option: English, German, Dutch, Spanish, French, Polish Italian Russian Portuguese Hungarian Czech Swedish Norwegian Finnish Danish. (More languages will be added in the future.)
- Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
- The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
- Auto VIN technology can automatically identify model and year information in no time.
- Actuation Test / Bidirectory Test is used to access vehicle-specific subsystem and component tests.
(SERVICE) RESET FUNCTIONS (some models/Years do not enjoy this functions yet):
- Oil Light/Service Reset: Support service lamp/ service interval reset.
- EPB (Electronic Parking Brake) system: maintenance deactivates and reactivates the EPB system for replacement and initialization.
- DPF (Diesel Particulate Filter) Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
- ETC (Electronic Throttle Control) system relearns the throttle valve control value while clear or replace the throttle valve.
- SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
- BMS (Battery Management System) - unfortunately not available for Mercedes vehicles as a special factory access code is needed.
- ABS Bleeding : release the air to restore ABS Brake sensitivity, or relearn while ABS replaced.
- Injectors Coding :relearn the injector control parameter while the injectors renewed or replaced .
- BCM(Body Stability): This function supports routine maintenance of DSC modules, for example, reset or delete the adaptation values, start-up the unit.
- ECM(Engine) : This function supports routine maintenance of engine modules, for example, reset or delete the adaptation values, calculate fuel consumption.
- TCM (Trans adaption): This function supports routine maintenance of transmission modules, for example, reset adaptation values, adjust the oil level.
- TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
- Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
- ACS (Air Conditioner), this function supports routine maintenance of air condition modules, for example, air conditioning system adaption reset, rese air conditioning compressor, run in air conditioning compressor, stepper motor initialization.
- Head Lamp is about the headlamp maintenance, maintenance and other related operations (Including AFS setting), and then perform this function for calibration.
- Seat calibration, after repairing or replacing the window lift moto, it is necessary to perform relevant functions for calibration.
Please kindly note : Not all systems /functions are available on all Years /Models .Especially some old car models .
This scan tool covers over 20 years of models .
Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
Please kindly confirm with us about the compatibility first with your VIN,YEAR & Functions you need.
Or please reference the Function List of MB V3.0
*We reserve the rights to make any change to this description without notice.
Professional OBDII Functions
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data stream.
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More…..
List of compatible vehicles (for more in detail please reference our function list)
107,124 , 126 , 201 ,AMG (190)
A-Class: W168 | W169 | W176
B-Class: W245 | W246
C-Class: W202 | W203 | W204 |W205
CL-Class: C215 | C216
CLA (117 ) / CLC(203)
CLS-Class: W219 | W218
E-Class: C207 | W211 | W212 |W213
G-Class: 461 | 463
GL-Class: X164 | X166
GLA 156 /GLC 253 / GLE 292 / GLK 204 / GLS 166 / MAYBACH 240
M-Class: W163 | W164 | W166
Maybach 57/62: W240/V240
S-Class: W140|W217 |W220 | W221 | W222
SL-Class: R129|R230 | R231
SLK-Class: R170 | R171 | R172
SLS 197: (197.377-SLS AMG / 197.477- SLS AMG )
SLR 199 (199.376 /199.476 / 199.976 )
Smart 453 , Smart Fortwo (A/C 450) , Smart Fortwo (C/A 451)
Smart Roadster (R/C 452) , Smart Roadster (W454)
Sprinter-- 690.6,901.6, 902.6, 903.6, 904.6, 905.6, 906
Vaneo--(16 pin) ; Vito/V-Class--Model Designation 638
Vito/Viano--Model Designation 639 (OBDII)
Vito W447 (2014- )

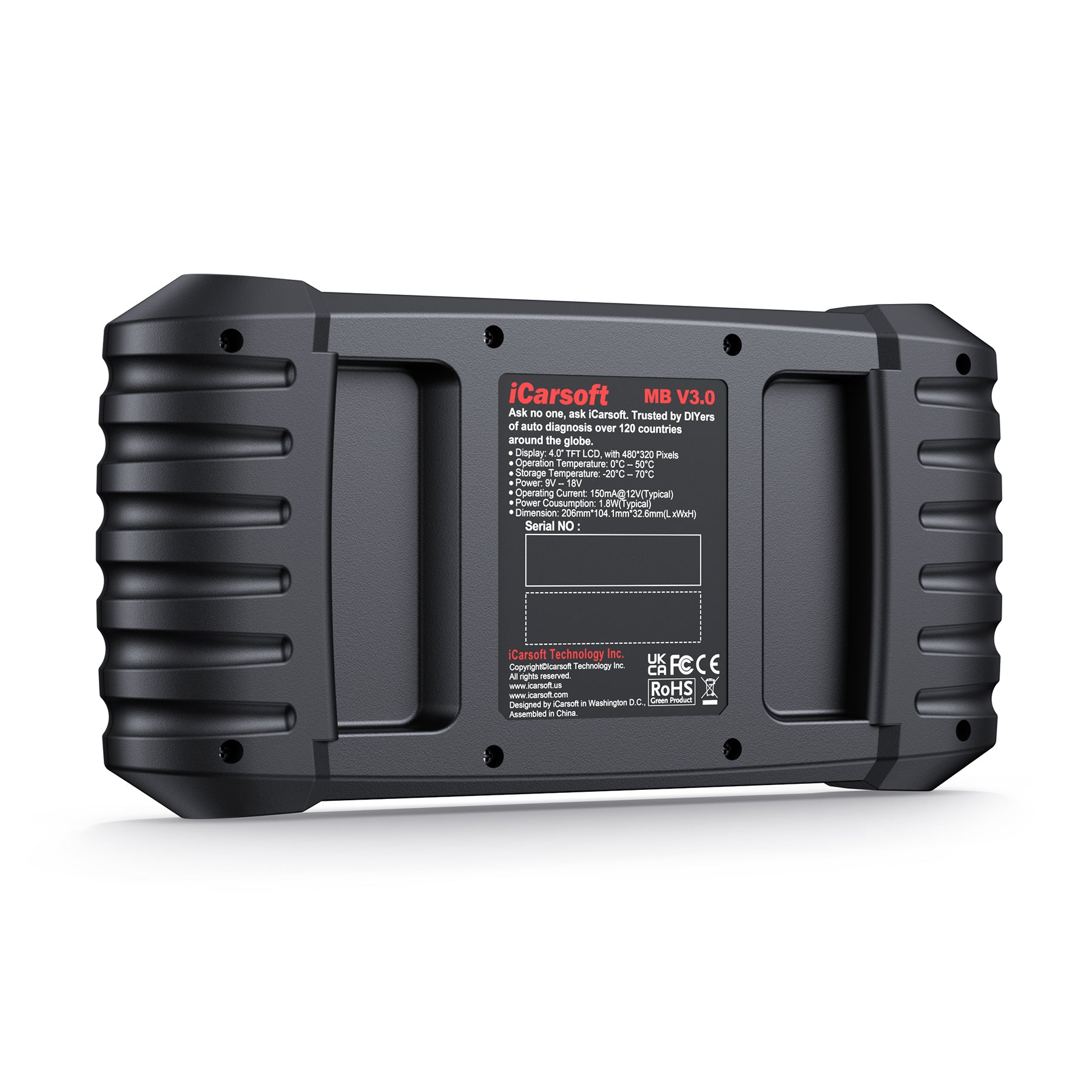

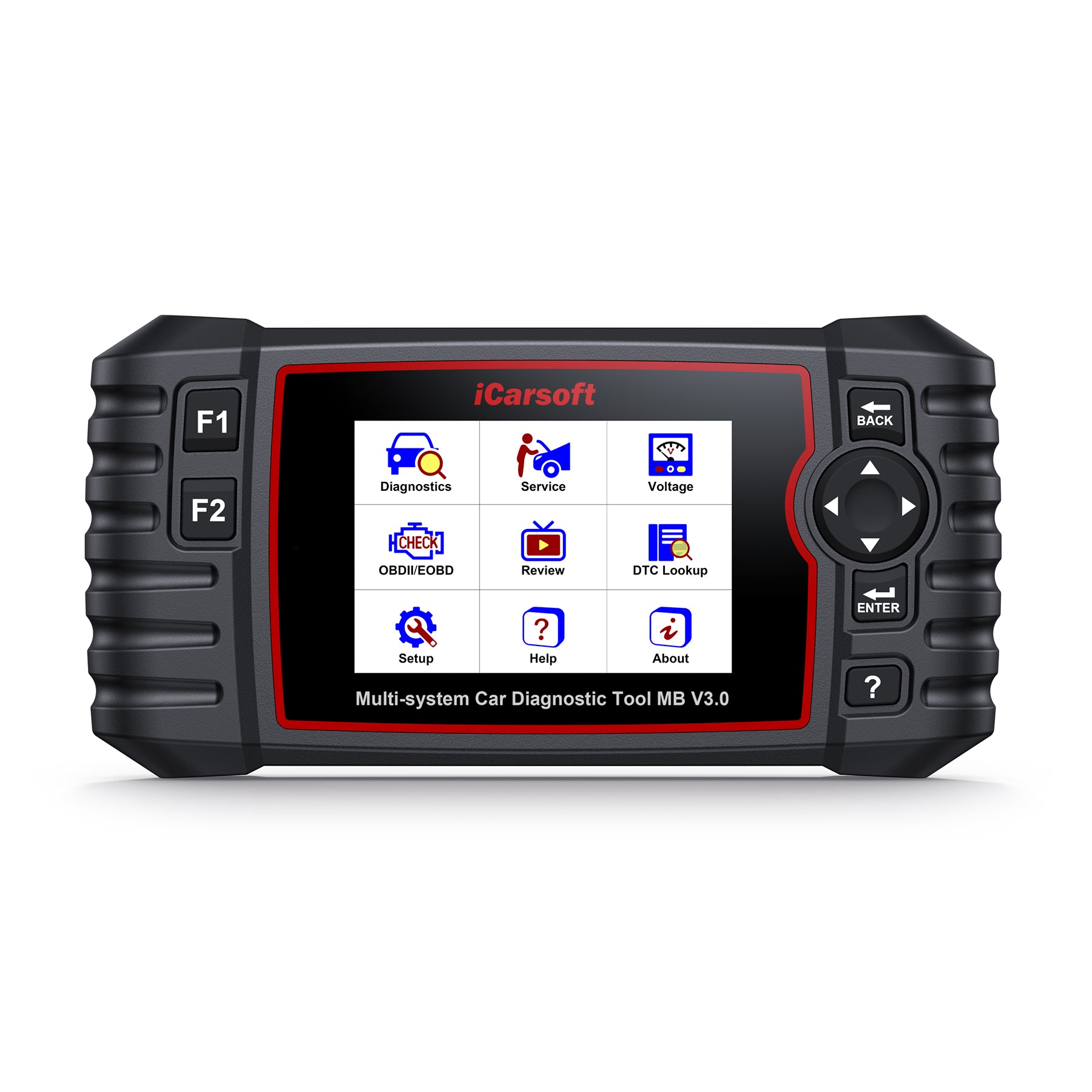

Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V(Typical)
Power Consumption: 1.8W(Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)

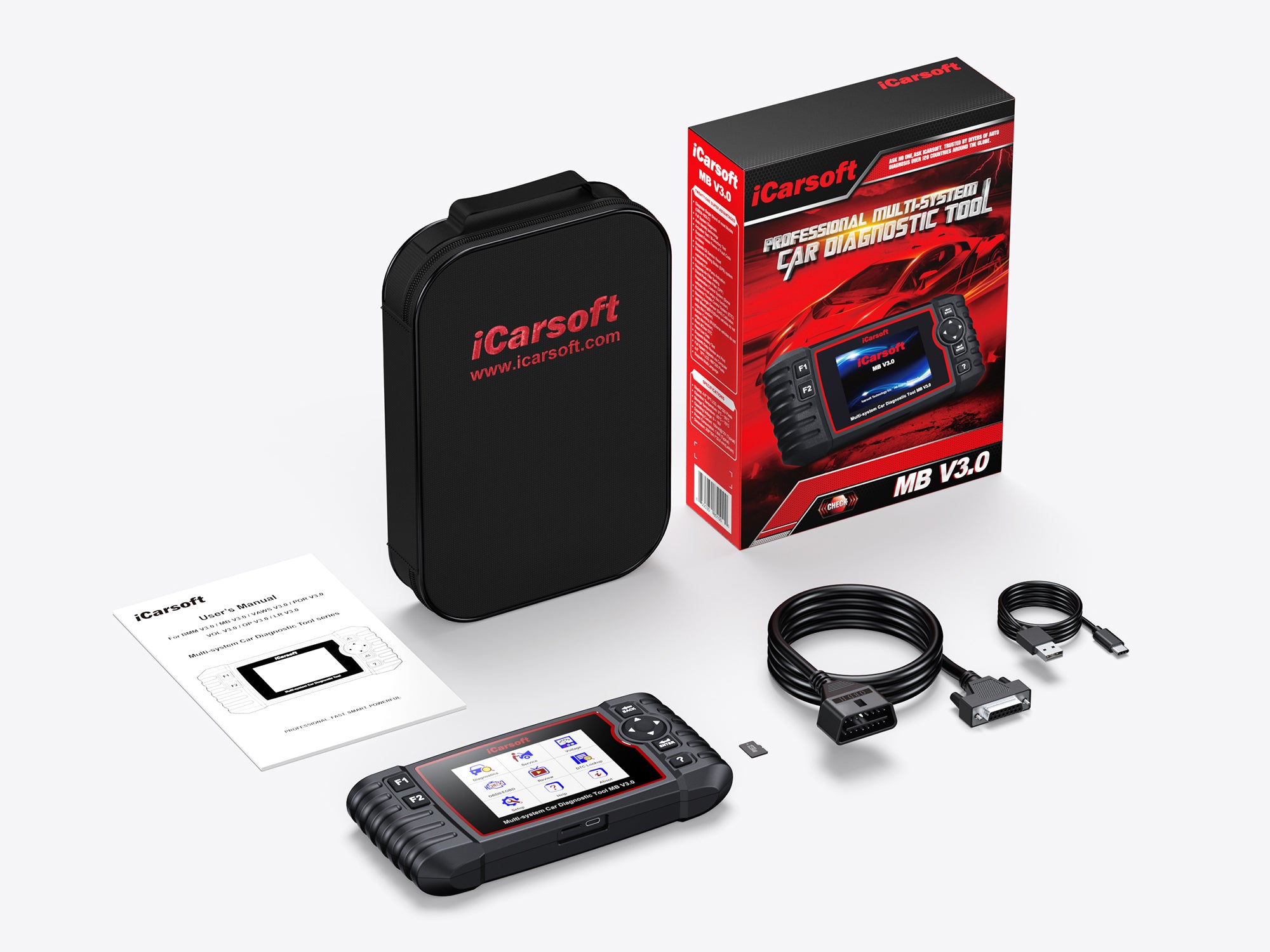

- Packaging item box
- Nylon Bag
- Main Unit
- Main OBD2 Cable
- PC Connecting Cable
- User Manual
- TF Card
Benz 38 pin OBDII Adapter
This adapter is Special designed by iCarsoft car scanners
Mainly applied to the Mercedes-Benz vehicles that equipped with 38 pin socket.
Suitable for our Models that support Benz cars like our MB V1.0, MB V2.0 ,CR Pro, EU Pro , CR V2.0(1+4),CR V3.0,CR MAX
Distributors can stock some sockets with the Scanner Orders, then offer to customers/users.
The wiring diagram for the 38PIN adaptor must be the same with the wiring diagram of the iCarsoft products' port.
Otherwise it may not be compatible with our products even when the appearance is the same (for example other brands OBD2 adapters)
Black one ( Engine only) : USD6 /pc
For Old Benz car models: C Class 202,E Class 210,S Class 140,CLK Class 208,SLK Class 170, SL Class 129
RED one (Multi systems ) USD29/pc
For Old Benz car models: C Class 202,E Class 210,S Class 140,CLK Class 208,SLK Class 170, SL Class 129
