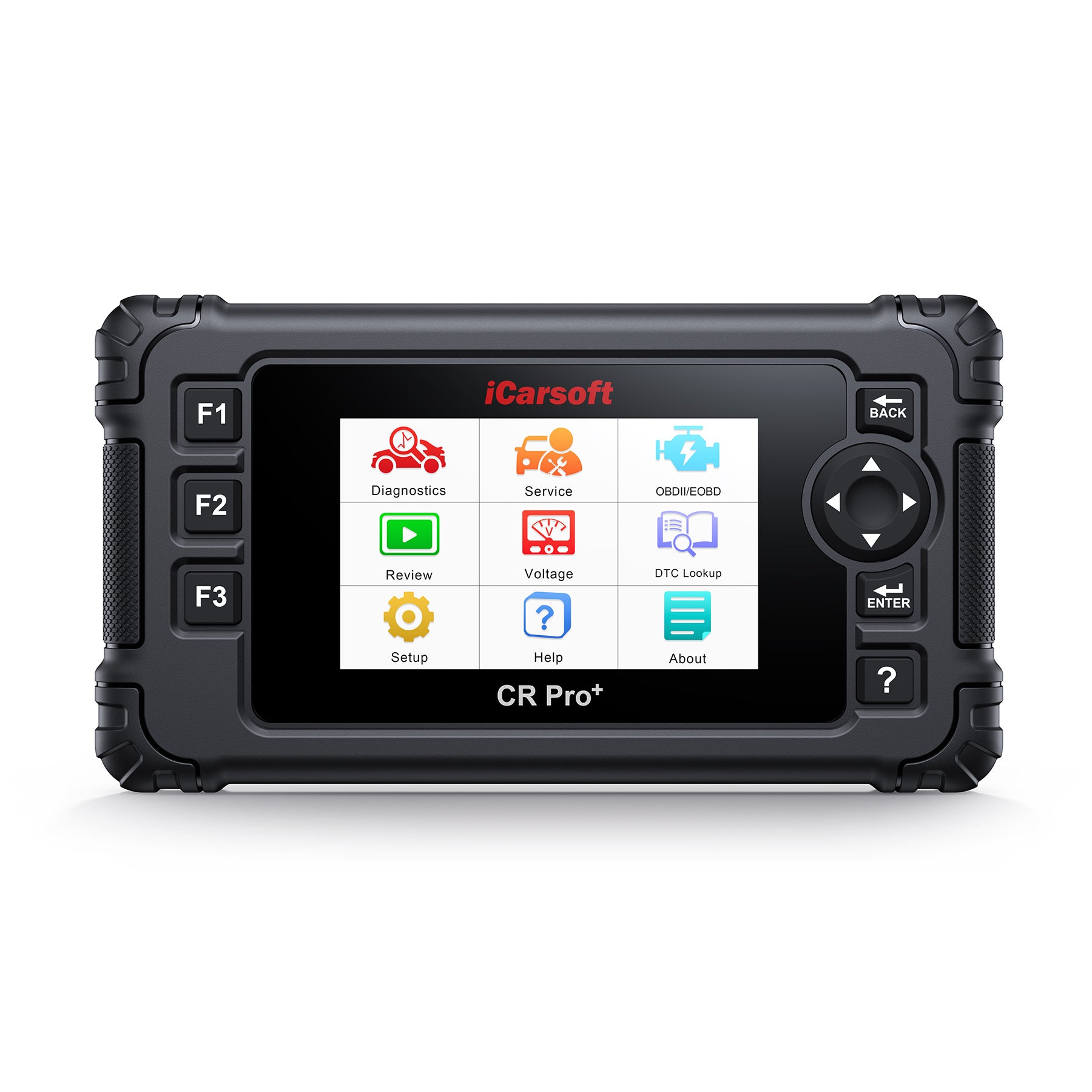

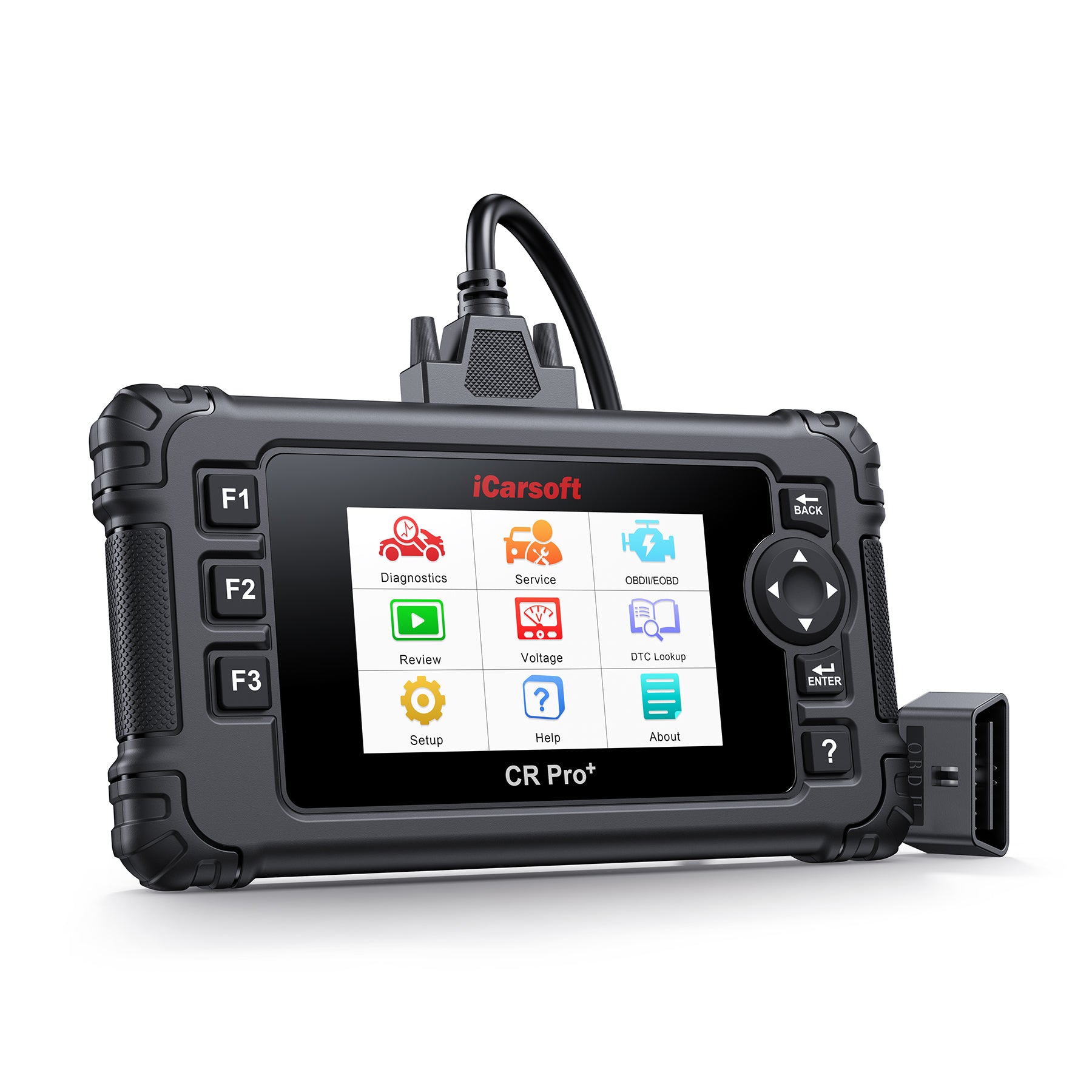

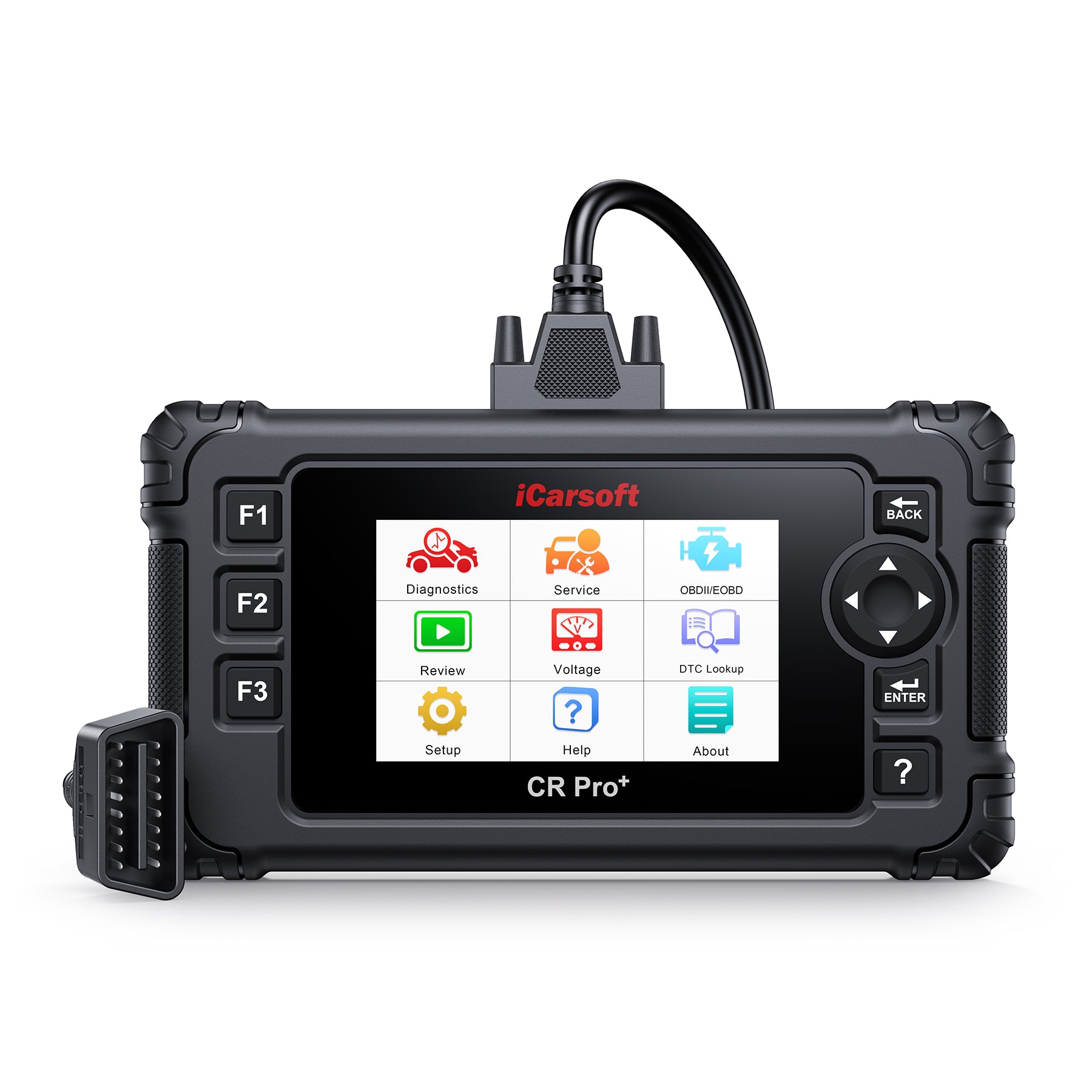

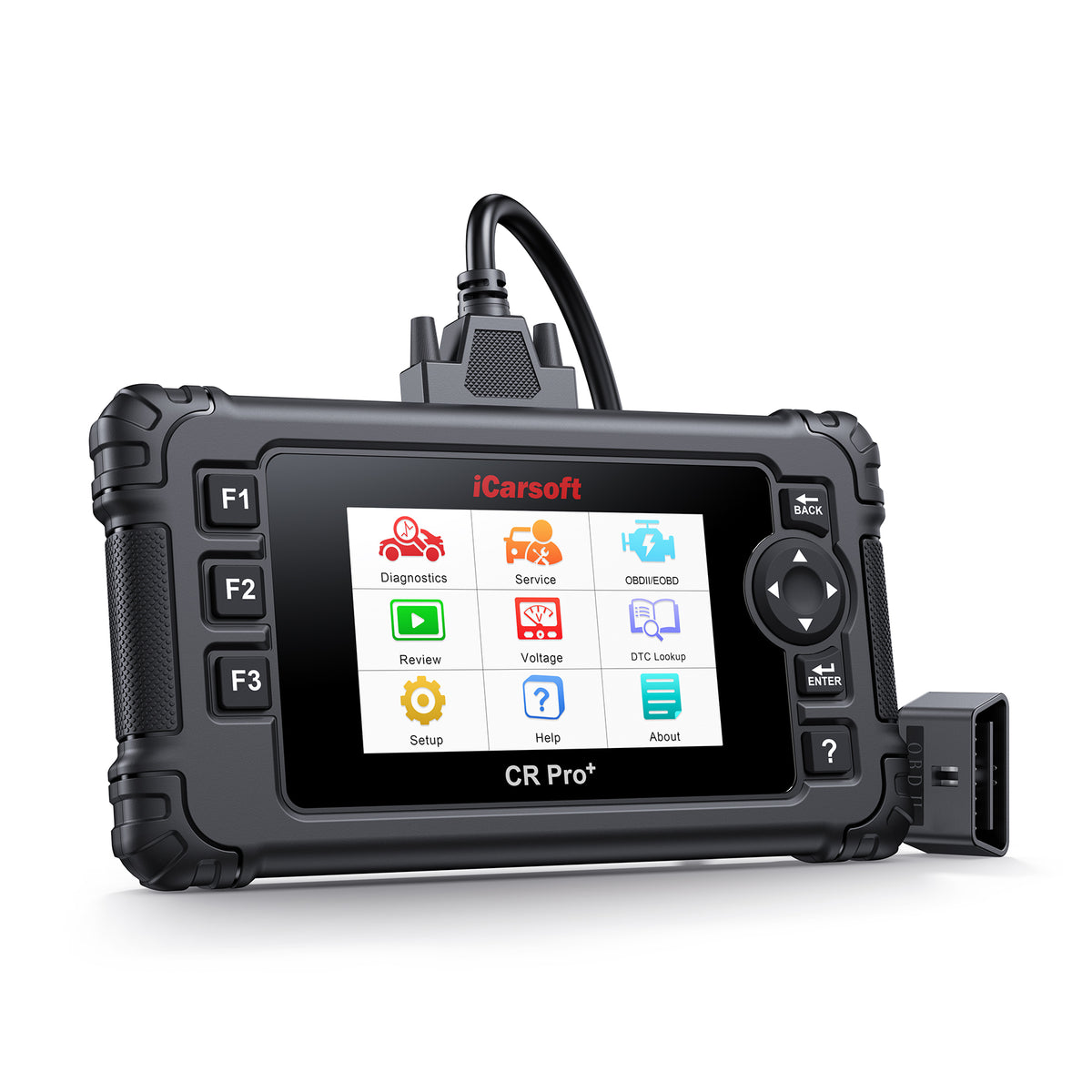

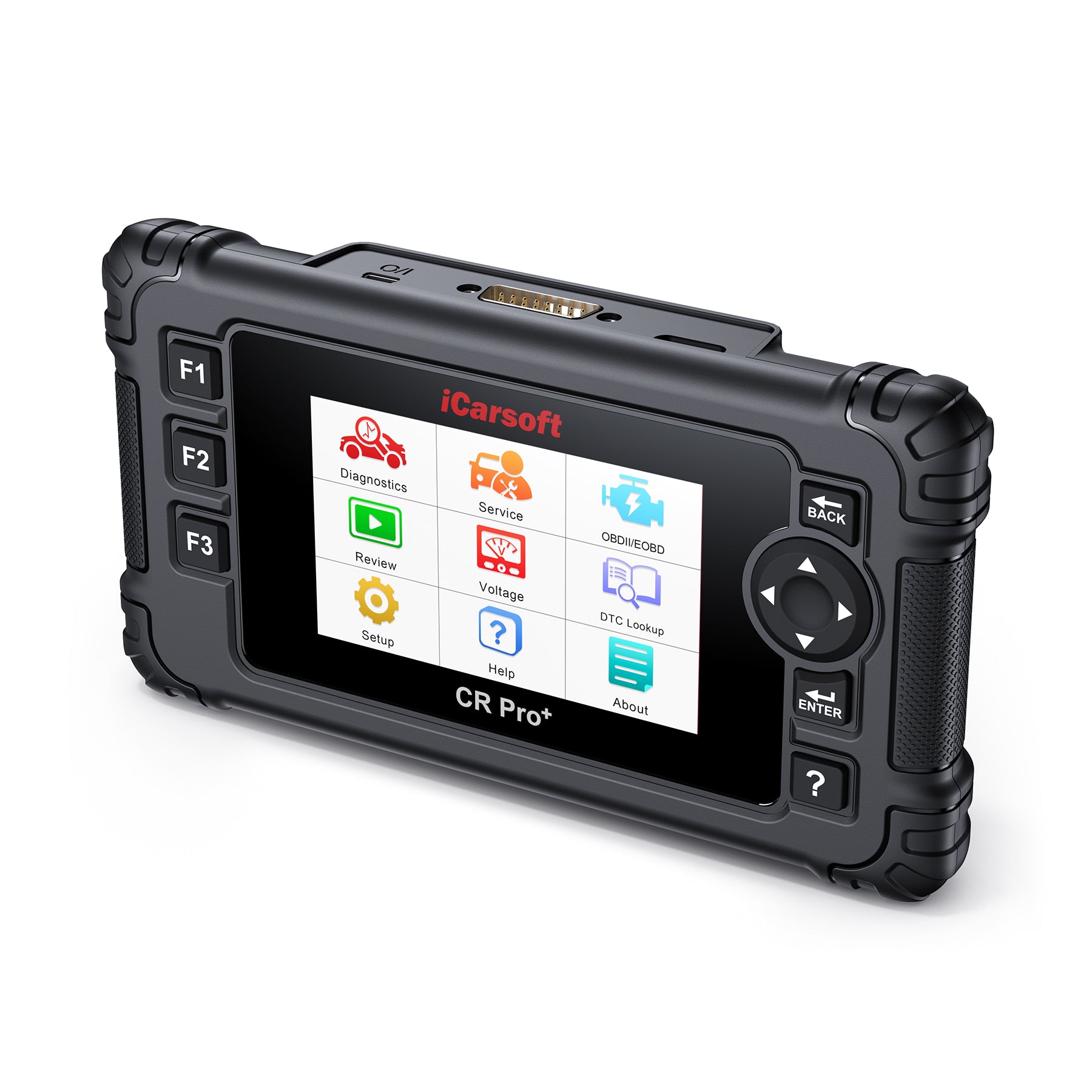

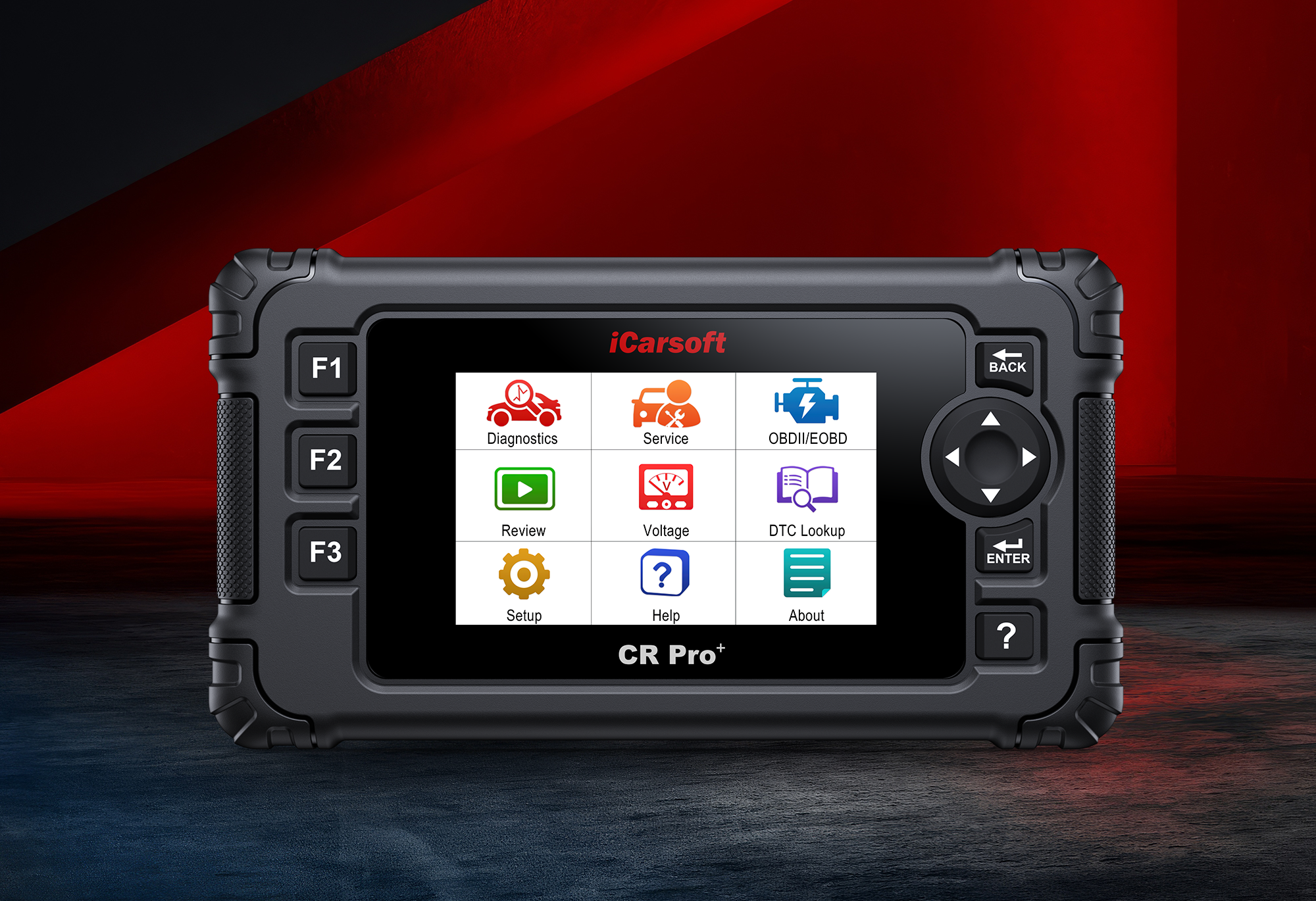

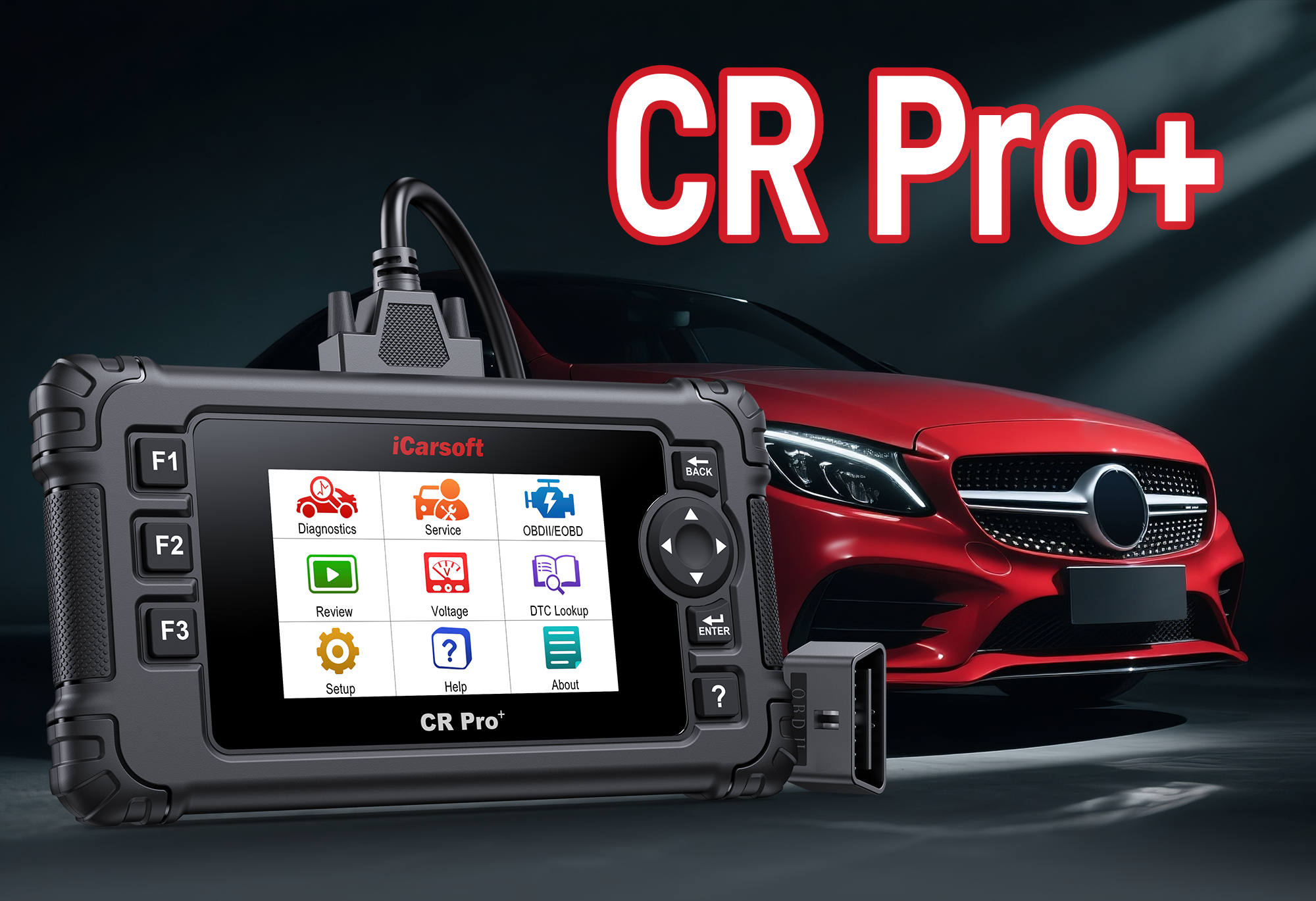

CR PRO PLUS +

Professional 4.3’’ LCD DIY Scanner for Multi-brand vehicles

 ICARSOFT CR PRO+ IS A PROFESSIONAL AND POWERFUL VEHICLE FAULT DIAGNOSIS TOOL FOR MULTI-BRAND VEHICLES (MORE THAN 40 KINDS OF VEHICLE MAKES) DEVELOPED BY ICARSOFT TECHNOLOGY INC.

THE CR PRO PLUS IS THE NON-TOUCHSCREEN VERSION OF THE CR MAX - WORKS VIA BUTTON CONTROL. THE SAME FUNCTIONS ARE SUPPORTED ON THE SAME VEHICLES.


To ensure the device is compatible with your vehicle, please contact us or check the coverage list under documents. Please note that not all functions are supported on all vehicles.


The iCarsoft CR Pro+ is capable of performing the following functions:

  • General diagnostics - reading and clearing DTCs
  • Read live data
  • Data review and print
  • OIL = Oil Service Reset
  • SAS = Steering Angle Sensor calibration
  • EPB = Electronic Parking Brake system maintenance
  • DPF = forced DPF regen (Diesel Particulate Filter Regeneration Control System)
  • ETC = Electronic Throttle Control system
  • BMS = Battery Management System
  • BLD = Brake lock (ABS bleeding)
  • INJ = Injectors coding
  • TPMS = Tyre Pressure Monitoring System
  • ECM = Engine Control Module / Unit
  • BSC = sensor calibration
  • TCM = Transmission Control Module
  • AFS = Adaptive Front-Lighting Systems (head lamp adjustments)
  • FPP = Fuel Pumps
  • ACS = Air Conditioning Systems
  • IDL = internal stop/start systems (idle mode / vehicle idling)
  • SPS = air suspension
  • + additional functions such as door, window and seat calibrations.

Updates are free for life and can be downloaded via the official iCarsoft website. You will require a PC to update the tool via USB connection.

TOGETHER WITH THE ABILITY TO QUICKLY READ AND CLEAR DTCS FOR ALL AVAILABLE MODULES OF THE MAJORITY OF THE MAKES AND MODELS ON THE MARKET, CR PRO PLUS PROVIDES YOU WITH SUPERIOR SPECIAL FUNCTIONS. IT FEATURES FULL ECU DIAGNOSIS OF MOST VEHICLE BRANDS AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.

Wide Vehicle Coverage (over 40 Brands ) :

Mercedes-Benz

Smart

Sprinter

Land Rover

Jaguar

Opel

Vauxhall

Audi

VW

Seat

Skoda

BMW

Mini

Porsche

Cayenne

Citroen

Peugeot

Renault

Dacia

Volvo

Saab

Alfa-Romeo

Fiat

Lancia

Hyundai

Kia

Daewoo

US Ford

EU Ford

AUS Ford

Holden

Toyota

Lexus

Scion

Isuzu

Nissan

Infiniti

Subaru

Mitsubishi

Suzuki

Mazda

Honda

Acura

Chrysler

Jeep

Dodge

GM (GMC/Buick/Chevrolet/Cadillac)



SUPER ADVANTAGES:

  1. Comprehensive OBD relearn coverage.
  2. Onscreen relearn procedure.
  3. Read &Clear codes for all available systems.
  4. Display live data in text, graph & analogue for easy data review.
  5. Can Record the vehicle Texts History and Identity the vehicle information automatically. Also to keep the live data information.
  6. Support OBDII/EOBD Ten Modes of Operation
  7. Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC
  8. Easy To Use With Silicone Keys
  9. DTC Library to lookup when user is operating this tool.
  10. Support Freeze Frame of Fault Code functions.
  11. Automatic software upgrade. Free service for life time
  12. Easy to feedback test questions online.
  13. Provides convenient instruction with customer in interface.
  14. Multiple languages for option: English, German, Dutch, Spanish, French, Polish Italian Russian Portuguese Hungarian Czech Swedish Norwegian Finnish Danish. (More languages will be added in the future.)
  15. Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.

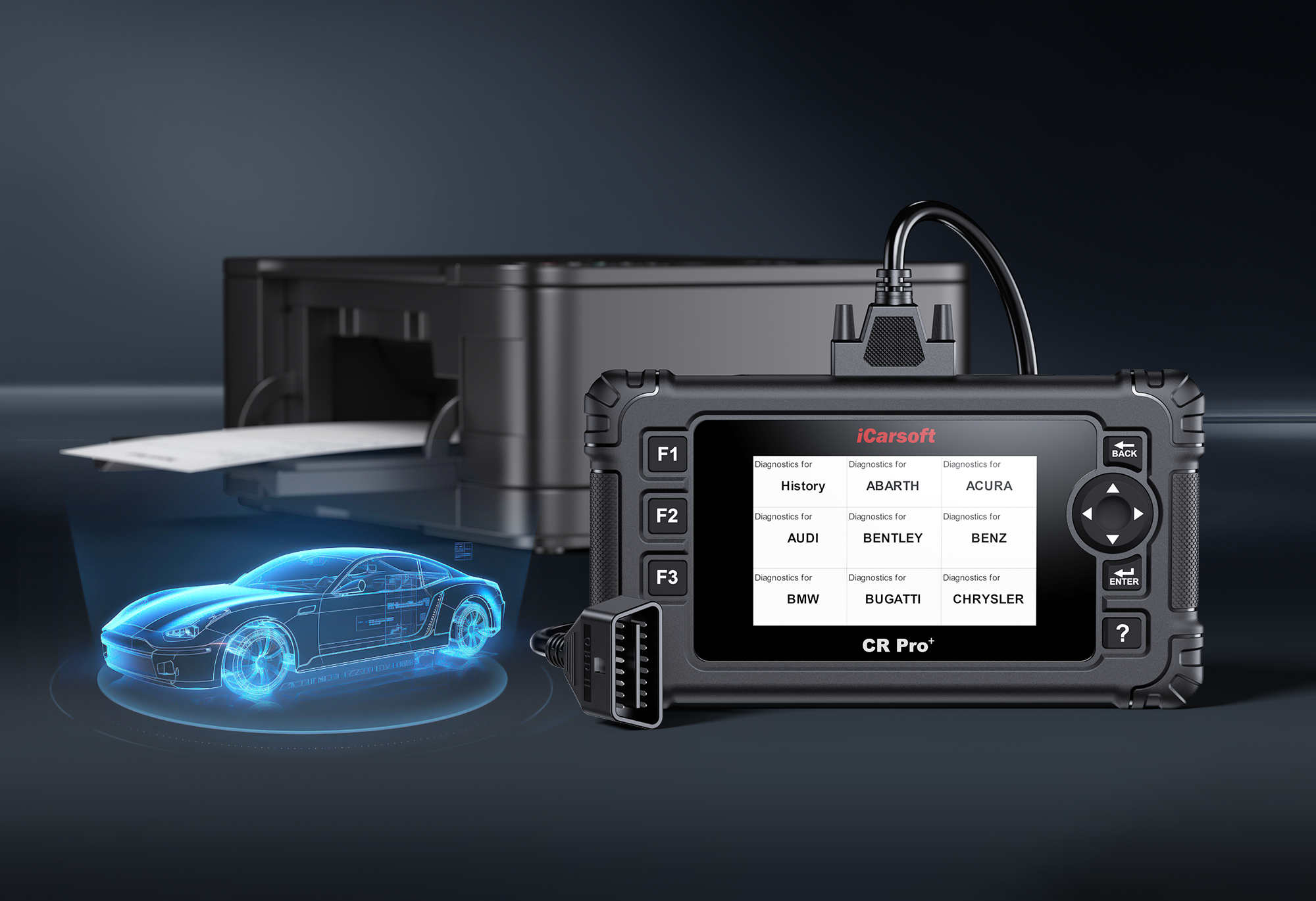

  16. The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
  17. Auto VIN technology can automatically identify model and year information in no time.
  18. Actuation Test / Bidirectory Test is used to access vehicle-specific subsystem and component tests

 (SERVICE) RESET FUNCTIONS

  1. Oil Light/Service Reset: Support service lamp/ service interval reset.
  2. EPB (Electronic Parking Brake) system: maintenance deactivates and reactivates the EPB system for replacement and initialization.
  3. DPF (Diesel Particulate Filter) Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
  4. ETC (Electronic Throttle Control) system relearns the throttle valve control value while clear or replace the throttle valve.
  5. SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
  6. BMS (Battery Management System), registers new battery to the BMS while battery replacement.
  7. ABS Bleeding : release the air to restore ABS Brake sensitivity, or relearn while ABS replaced.
  8. Injectors Coding :relearn the injector control parameter while the injectors renewed or replaced .
  9. BCM(Body Stability): This function supports routine maintenance of DSC modules, for example, reset or delete the adaptation values, start-up the unit.
  10. ECM(Engine) :This function supports routine maintenance of engine modules, for example, reset or delete the adaptation values, calculate fuel consumption.
  11. TCM (Trans adaption):This function supports routine maintenance of transmission modules, for example, reset adaptation values, adjust the oil level.
  12. TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
  13. Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
  14. ACS (Air Conditioner),this function supports routine maintenance of air condition modules, for example, air conditioning system adaption reset, rese air conditioning compressor, run in air conditioning compressor, stepper motor initialization.
  15. Head Lamp is about the headlamp maintenance, maintenance and other related operations (Including AFS setting), and then perform this function for calibration.
  16. Seat calibration, after repairing or replacing the window lift moto, it is necessary to perform relevant functions for calibration.

Please refer to the functions list under 'Documents' for more info.

Not all systems and functions can be accessed on all vehicles, often due to the age of the car.

Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.





Professional OBDII Functions

1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data stream.
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Colour Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More…..

    SPECIFICATIONS

    Dimensions(W*H*D): 240.0mm*150.0mm*35.0mm

    Operating System: Android 8.10

    Processor: 4Nuclear 1.3GHz

    Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution



    RECOMMENDED USE

    INDOOR

    OPERATING SYSTEM

    ANDROID 8.1.0

    PROCESSOR

    4NUCLEAR 1.3 GHZ

    MEMORY

    16GB

    DISPLAY

    4.3" LCD, 800x480px

    CONNECTIVITY

    MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II

    BODY COLOR

    BLACK

    AUDIO INPUT/OUTPUT

    OUTPUT: BUZZER & SPEAKER

    INPUT: N/A

    POWER AND BATTERY

    2.4W POWER CONSUMPTION (TYPICAL)


    VOLTAGE RANGE:9-18V

    TESTED BATTERY LIFE

    N/A

    BATTERY CHARGER

    N/A

    POWER CONSUMPTION

    2.4W

    OPERATING TEMP

    OTO 40° C (32 TO 104°F)

    STORAGE TEMP

    -20 TO 70° C(-4 TO 158°F)

    OPERATING HUMIDITY

    5%-95% NON-CONDENSING

    DIMENSIONS(W*H*D)

    205MM*113MM*31MM

    NET WEIGHT

    <400G

    SUPPORT PROTOCOLS

    IS09141-2JS014230-2,IS015765,K/L-LINE

    SAE-J1850 VPW,SAE-J1850PWM,

    IS011898(HIGHSPEED,MIDDLESPEED, LOWSPEED AND SINGLEWIRE CAN, FAULT-TOLERANT CAN)

    SAE J2610,GM UART UART ECHO BYTE PROTOCOL

    HONDA DIAG-H PROTOCOL,TP2.0,TP1.6



    The CR Pro+ is a V3.0 device and can cover all the same functions as an individual V3.0 device. For example, if you need to check the compatibility of your Mercedes vehicle, please refer to the documents under MB V3.0, and for a Land Rover, LR V3.0 and so on.

    Please visit the links below and select the 'Documents' tab to check if your vehicle is supported:

    Audi / Seat / Skoda / Volkswagen

    BMW / Mini

    Citroen, Peugeot, Renault, Dacia (+ other French makes)

    Fiat / Alfa Romeo

    Ford / Holden / Chrysler / Chevrolet

    Kia / Hyundai / Daewoo

    Land Rover / Jaguar

    Mercedes / Sprinter / Smart

    Porsche

    Toyota / Nissan / Mitsubishi (+other Japanese makes)

    Vauxhall / Opel

    Volvo / Saab

    The links above show the maximum function level that this model can support. Please refer to the documents on each page or contact us and we will be happy to help.

    CONTENTS:

    1. Packaging item box
    1. Main Unit CR MAX
    1. Main OBD2 Cable
    1. USB connecting Cable
    1. External Power Adapter
    1. Quick Guide book
    1. Hardcopy User’s Manual

     Optional Adapters (for old car models )

    BENZ 38PIN,  SPRINTER 14PIN,  BMW 20PIN
