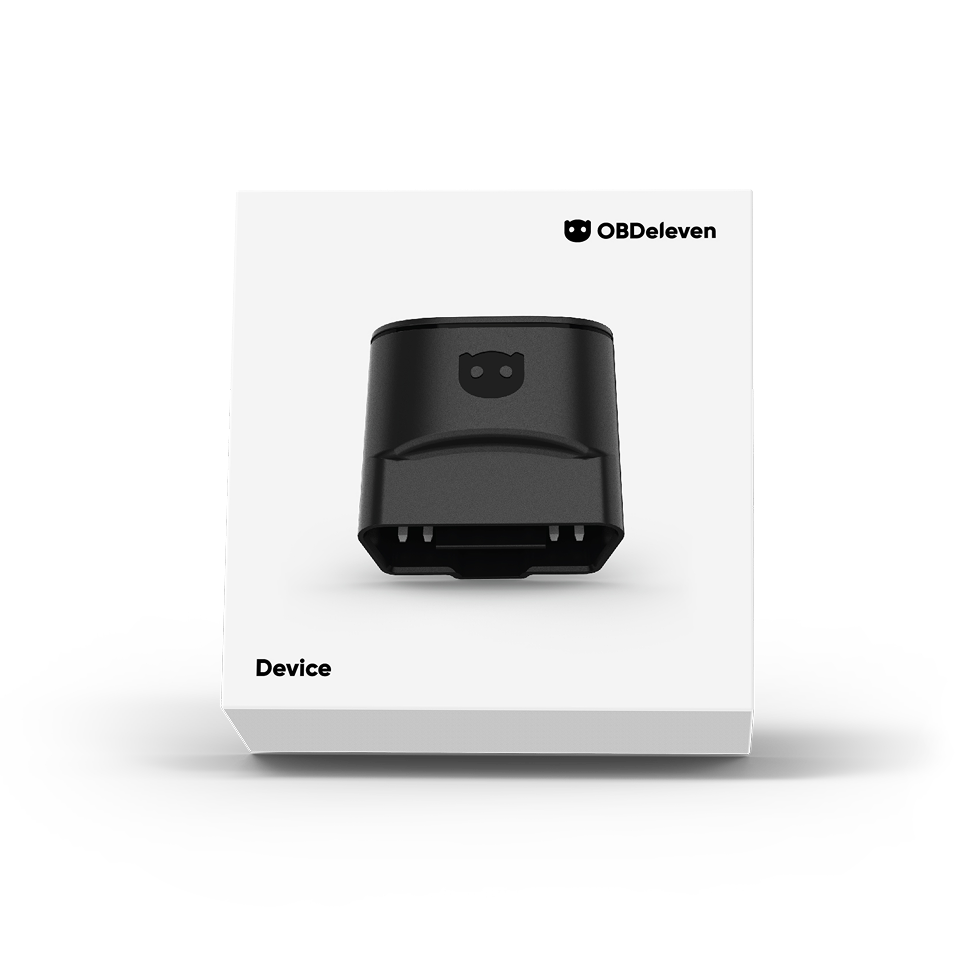

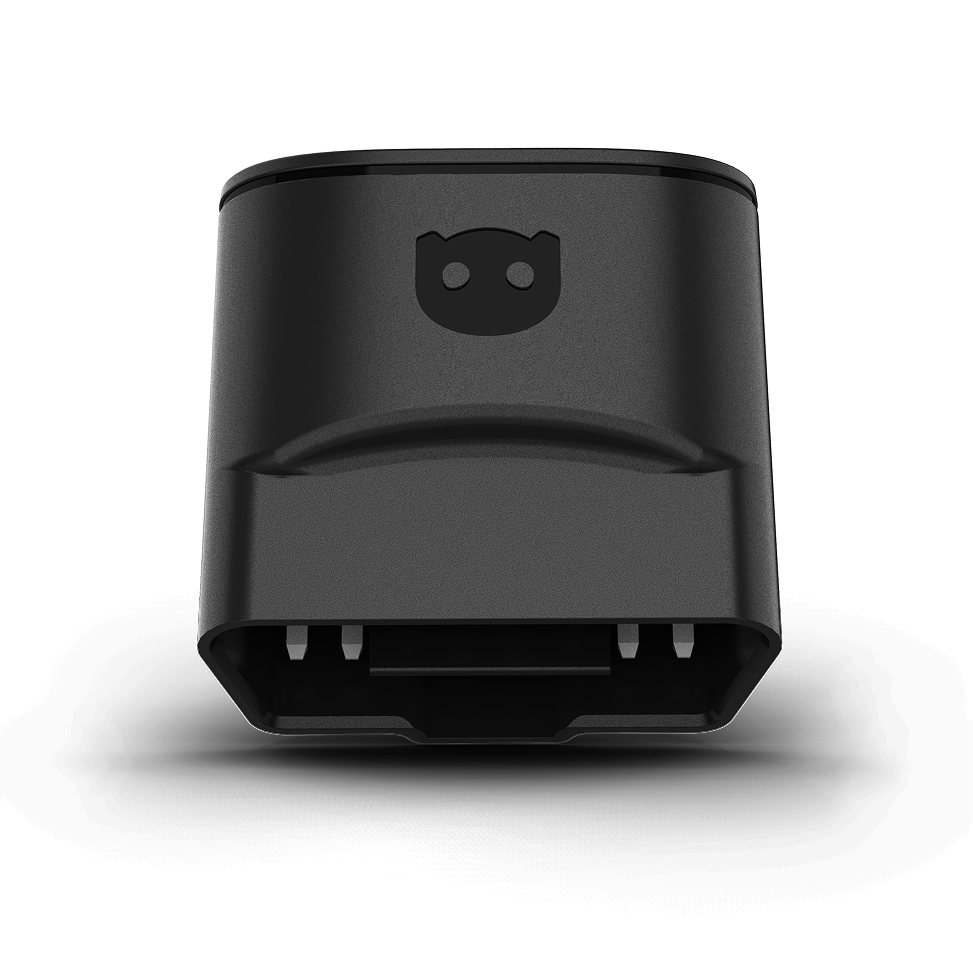

OBDeleven Standard Edition Tool with Easy Remove Ring

UNDERSTAND YOUR VEHICLE
The perfect tool for Diagnostics, allowing you to:

• Automatically identify vehicle from VIN

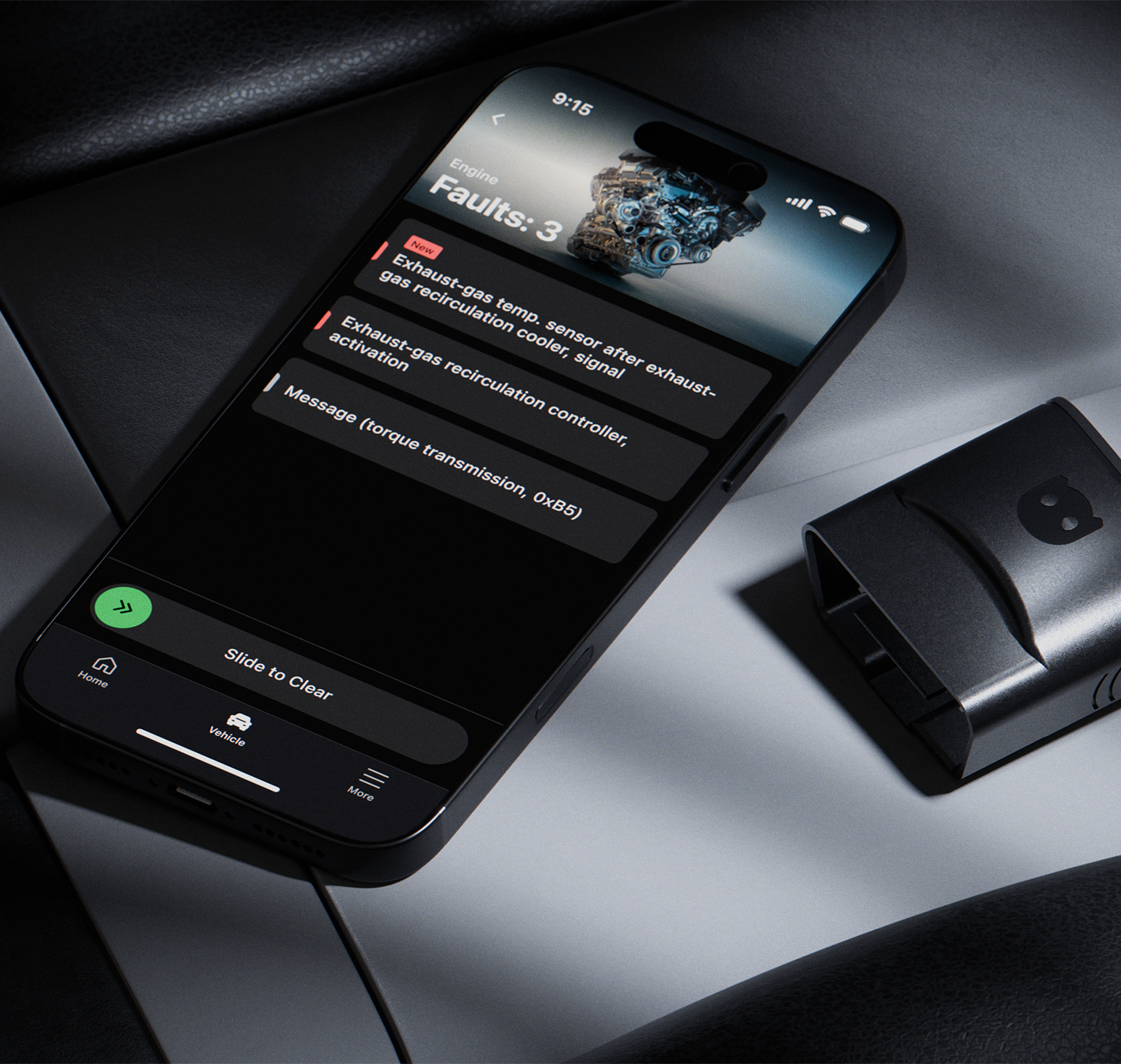

• Read and clear diagnostic trouble codes from ALL control units
• Read information about the control unit (i.e. Part number, Software number, Coding, etc.)
• Share diagnostic data log via email
• Observe battery status
• Log connected cars history
• Engine, Equipment and Fault code lookup and more...

ONE-CLICK-APP*
This is a new, evolutionary and easy to use application for adjusting and activating your vehicle functions with just a click of a button.

You can access functions such as:

• Perform service (Oil service reset, Brake pads replacement, etc.)
• Adjust car lights (Daytime running lights, Cornering lights, etc.)
• Control comfort system settings (Comfort window close/open, etc.)
• Activate functions after retrofits (LED license plate lights, etc.)
• Activate cool visual features (Needle sweep, etc.)
• Add functions (Lap timer, Multimedia engineering menu, etc.) and much more...

*All apps cost Credits, even with the PRO version.

OBSERVE YOUR VEHICLE REAL-TIME
Live data will allow you to keep an eye on your vehicle parameters Real-Time, which will help you identify pursuing faults.

In our application, you will find that all Live Data for ALL control units is represented in Graphs or Gauges for your convenience.

Specifications

Connection: Bluetooth
Diagnostics Protocols: KKL, CAN and CAN-UDS
Firmware Version: 4.2
Protection: Password secured connection
Size: 4.8 cm x 3.2 cm x 2.5 cm
Weight: 30g
Operating Voltage: 9 - 16 V
Operating Temperature: -20 ~ 80 °C
Current: 45 mA

Compatibility

You can find out whether your vehicle is supported here.

All plans and credits must be activated within 30 months of purchasing your device.
